Deskbox with fastening clamp, 2 VDE sockets, USB Charger
Nr. art. 6116762 | EAN 4012197333249
- Descrierea produsului
-

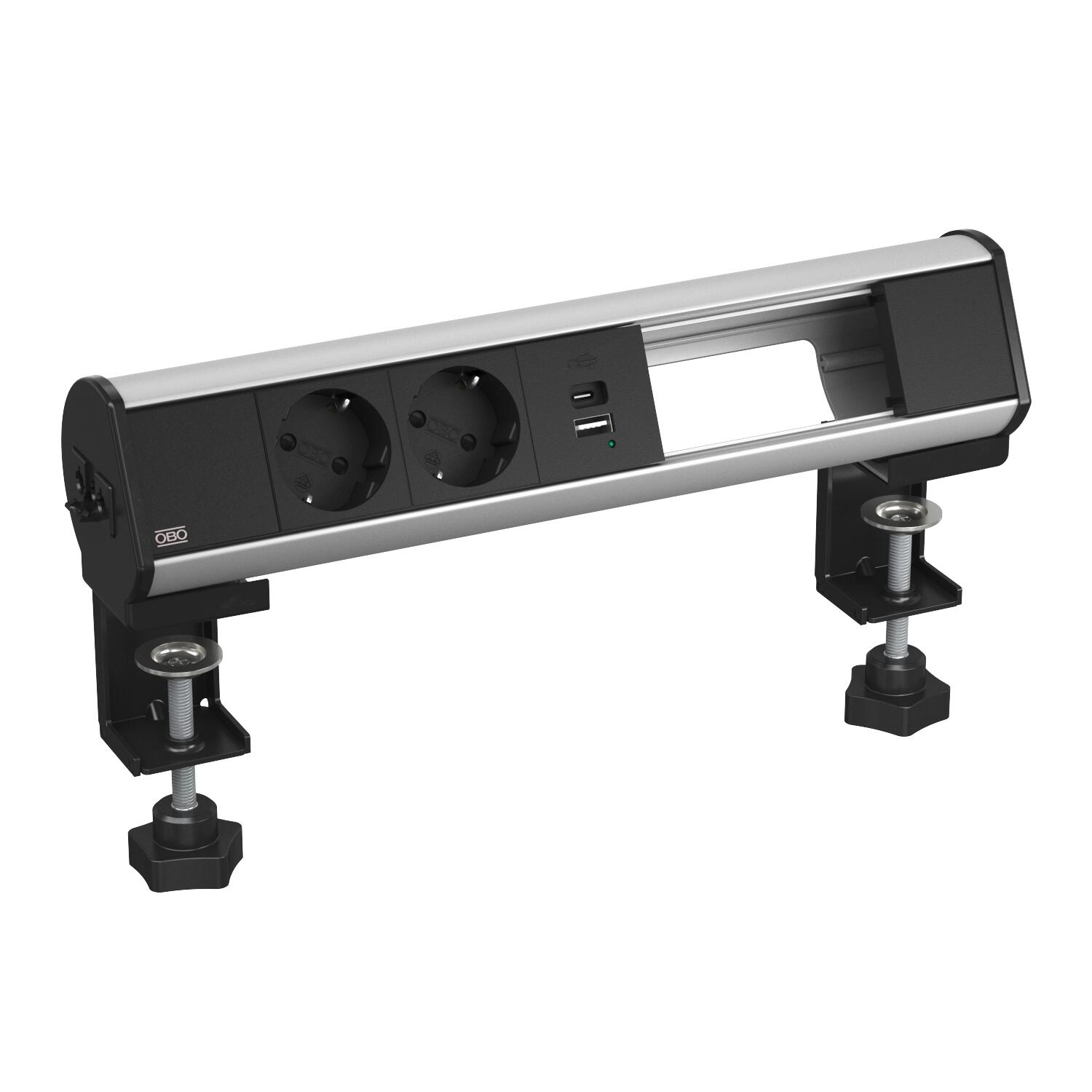

Descrierea produsuluiReady-for-connection Deskbox DBL for the direct supply of workstations with power, communications and data technology connections. With a Wieland GST18® connector and cable outlet at the left side of the profile. Toolless mounting with 2 fastening clamps for tabletop thicknesses of 8 to 40 mm and 40 to 70 mm. The Deskbox is equipped with 2 black protective contact sockets in 33° connection direction and a 18W USB A+C Charger. In addition, the Deskbox has space for retroinstallation of 4 communications and data technology Keystone modules (type Modul 45®).
-
- Date tehnice
-
Date tehnice

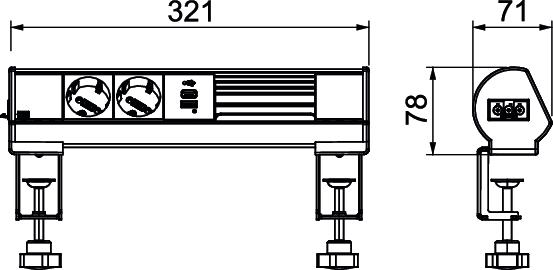

Amprenta CO2 (GWP) de la leagăn la poartă 11,8669 kg CO2e / 1 Bucată Culoare aluminiu Dimensiune 325x71x78 Extensibil nu Înălţime 59 mm Lungime 145 mm Material Aluminiu Poate fi rabatat nu Suprafaţă eloxat - Toate tipurile
- Materiale de descărcat
-
Specificații DBL-1B D2S 1C / 6116762 , 0.17MB , pdfREACH Declarație de conformitate DBL-1B D2S 1C / 6116762 , 0.13MB , pdfRoHS Declarație de conformitate DBL-1B D2S 1C / 6116762 , 0.13MB , pdfInstrucțiuni de montaj Deskbox DBL with sockets , 0.56MB , pdfInstrucțiuni de montaj Multimedia support/Data technology support MTG.../DTG.... , 0.29MB , pdf
